Product name: MN MODEL MN168 RC Car Upgrade Parts Metal Kit

Quantity: 1set

Applicable model: MN-RC MN168

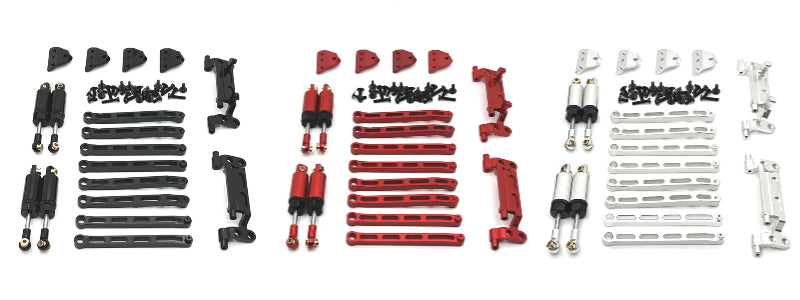

Color: Red, silver, black

Material: 6061 aluminum

Weight: 105g

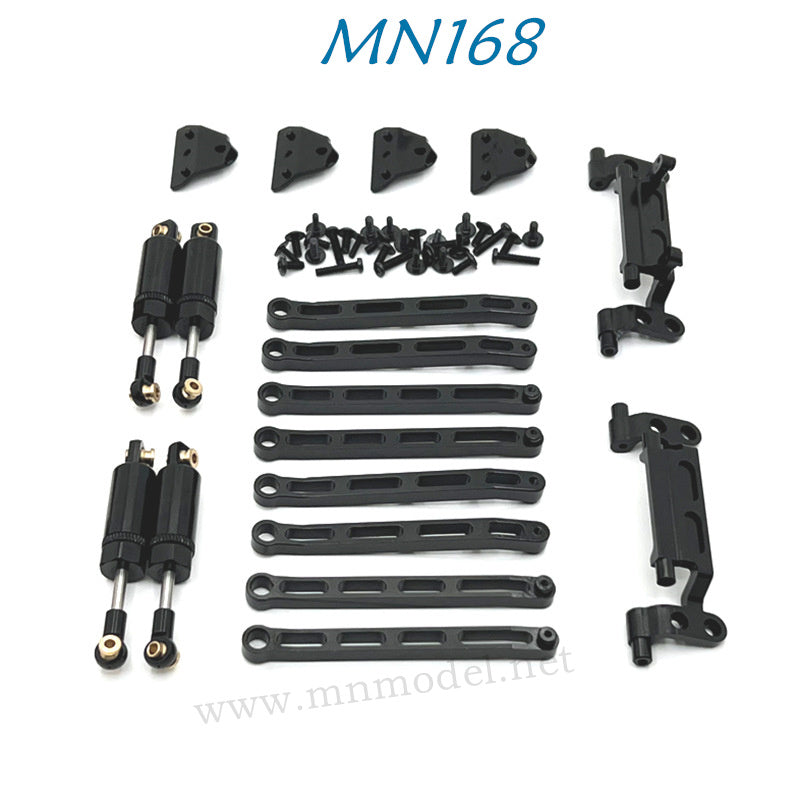

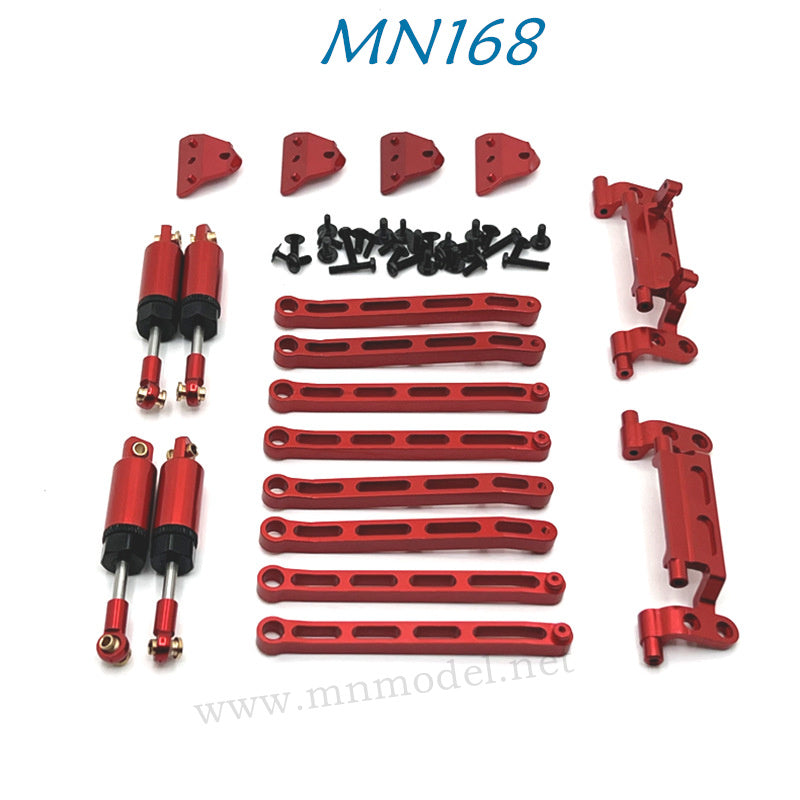

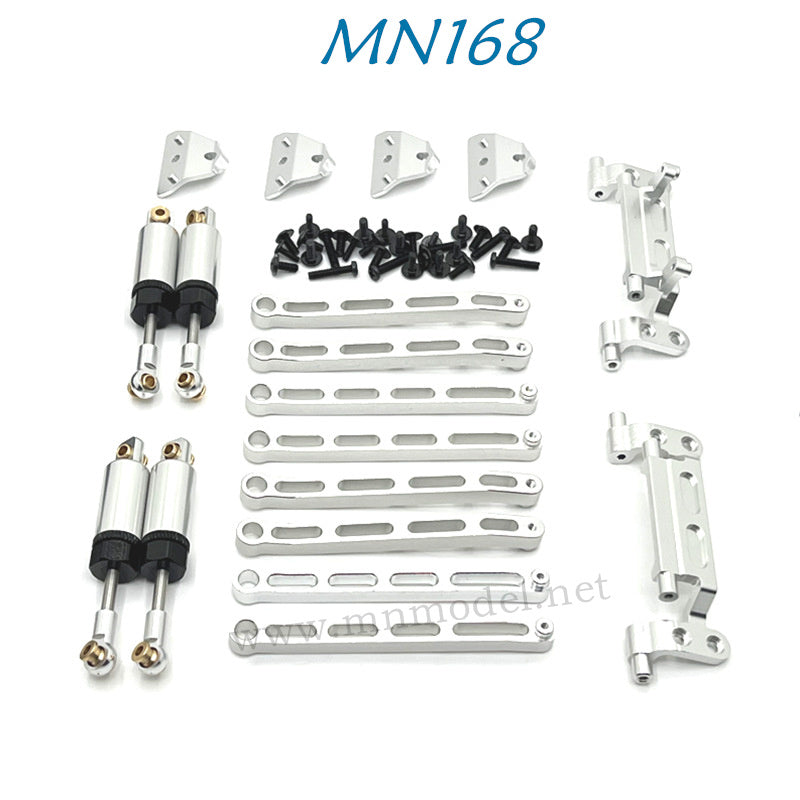

MN MODEL MN168 RC Car Upgrade Metal Kit includes parts and dimensions:

Tie rod 4 length 72mm

Tie rod 4 short 70.5mm

Shock absorber bracket 24mm*17.5mm*10mm

Front tie rod seat 72.5mm*21.5mm*25mm

Rear tie rod seat 72.5mm*21.5mm*16.5mm

The total length of the shock absorber is 62.6mm, the hole distance is 56mm, the stroke is 8mm, and the outer diameter is 11mm

Note: Hydraulic shock absorber, built-in spring, has been refueled

Four features of the MNMODEL MN168 RC Car:

1. With a lock tire hub, you can prevent miscarriage.

2. Equipped with independent receiving electric modulation, full proportion control, player control stability.

3. Equipped with oil pressure shock absorber, adjustable support, can reduce the ground uneven rebound.

4. With a new gate and bridge, the distance from the ground is higher, which can improve the passability of vehicles.
