Product name: HAIBOXING 3100A RC Car/ HBX 3100A RC Car

Product ratio: 1/16

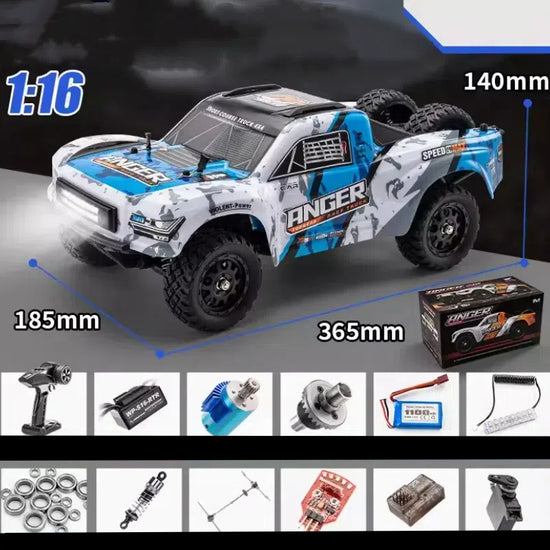

Product specification: 365*185*140mm

Wheelbase: 208mm

Color: Green, orange

Control time: about 12 minutes

Charging time: 4 hours (original USB charging cable) /2.4 hours (5V, 2A charging head, charging head without match)

Differential structure: planetary differential - front car (powder metallurgy teeth)

Material: Hardware, electronic, plastic

Speed: about 60km/h when no load

Steering gear: Independent 3 lines, 17g steering gear

Receive: Receive independently

Motor: 2840 3800KV brushless motor

ESC: independent brushless ESC

Remote control car battery: 7.4V 2S 1100mAH li-PO

Remote control battery: 3*AA (need to buy separately)

Charger: USB charger

Remote control frequency: 2.4Ghz

Remote control distance: about 100m

Remote control category: full proportional synchronous control system

Circuit Multiple protection for HBX 3100A RC Car:

1. Charging protection, with constant current and constant voltage balanced charging, battery overcharge and overcurrent protection function.

2. With motor anti-interference protection function.

3. High temperature protection, when the working temperature is higher than the set conditions, the drive control circuit stops working, and the temperature is reduced to normal after resuming work.

HBX 3100A RC Car configuration includes:

Remote control car

Remote control unit

Specification

Recharger

Description of the functions of HAIBOXING 3100A RC Car:

1.2.4G full proportion synchronous remote control system, full proportion throttle steering, players play more freely.

2. Four-wheel drive front independent suspension system, rear straight bridge design, can pass a variety of obstacles.

3. Powder metallurgy metal gear, metal drive shaft, metal cup, aluminum cap shock absorber,  metal material is more durable.

4. Vehicle RTR, with Li-ion lithium-ion battery and USB charging cable (if you want to charge faster,  you can buy 5A charging head).

5. Assembly of suitable double spare tires to prevent tire damage during play and can not be replaced in time.

6. With gyroscope, help the remote control car turn more quickly and accurately.

7. Independent brushless electric modulation, independent reception, 3-wire steering gear,  smooth signal and sufficient power.

8. The whole car ball bearing, reduce wear, improve efficiency.

Details of Haiboxing 3100A RC Car internal configuration:

HBX 3100A RC has a strong off-road capability. It is equipped with independent hydraulic shock absorption, brushless motor, four-wheel drive design and rear long stroke straight bridge design, equipped with a good EIC, independent gyroscope, full scale remote control. It greatly improves the high-speed off-road capability of this car.

HBX 3100A RC uses a rear straight rear suspension with a rear lift of up to 40mm and a minimum height of 35mm from the ground. This design increases the stability of the vehicle on long journeys.

HBX 3100A RC Car is equipped with high-lighted LED lights, which not only cool, but also enhance the player's view of the night driving.

In addition, HBX 3100A RC's rear roll cage is equipped with two full-size spare tires that can be removed and replaced.

HBX 3100A RC is equipped with an ESP vehicle stabilization system. The ESP can correct the attitude and direction of the vehicle in a timely and effective manner when the vehicle skids or loses control at high speeds.
